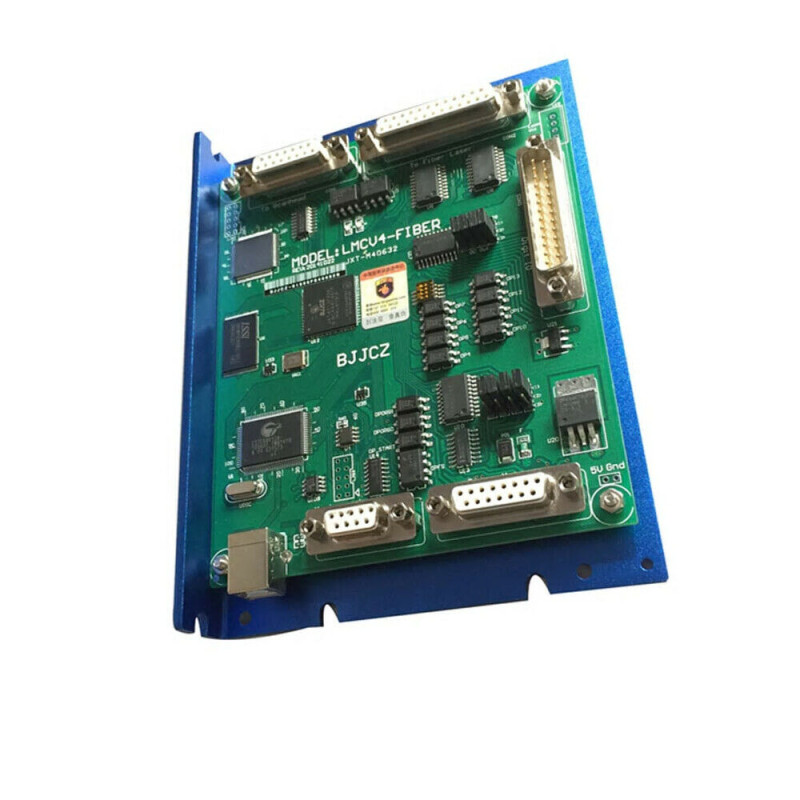

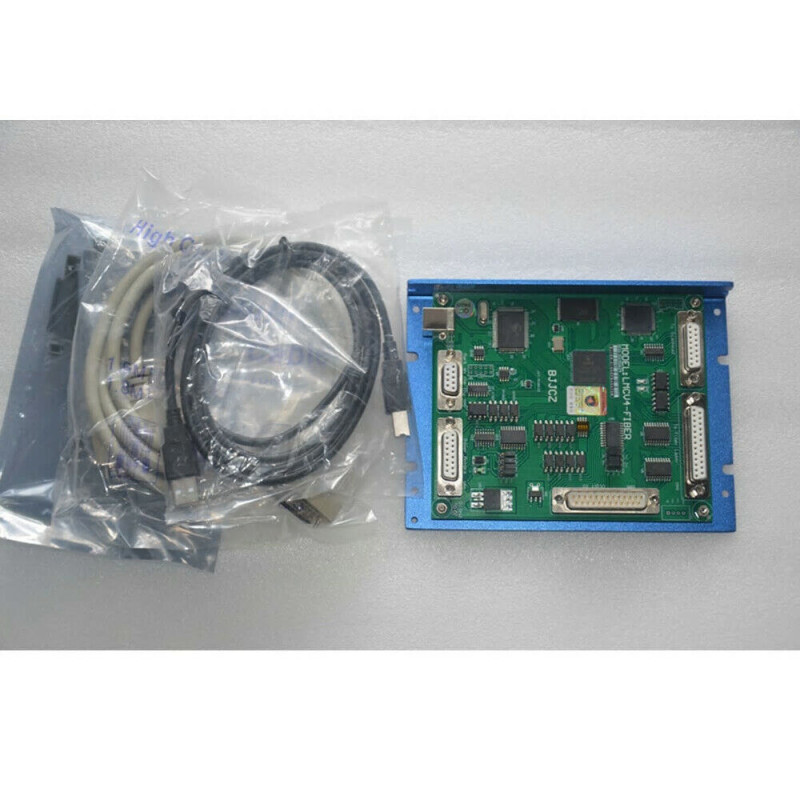

EZCad Laser Marking control card - V4 OEM | Fiber Laser Parts

Product model:LMCV4-FIBER, OEM model with Certificate of Authenticity.

Main Features

-Standard DB25 connector, can be wire to IPG laser directly.

-Galvo control signal is digital, which can be connect to most scanhead directly.

-Mark on-the-fly marking feature. A encoder can be used to surveillance the pipeline speed in real-time.

-Multiple boards on 1 computer: One computer can control up to 8 control board to mark different pattern simultaneously

-Extension axis(step motor or servo motor): two set of direction/pulse signal can be used to control 2 step(servo) motors.

-16 general input signals(TTL compatible): In0-In13, XORG0(IN14), YORG0(IN15).

-8 general output signals(TTL compatible): Out0-7 coming out of Con5. Out0 - 3 are TTL outputs. Out4-7 can be configured as OC outputs or TTL outputs.

-Laser Err signal: this signal will be activated when there is an error occurs in the laser, OCoutput.

-Remark function: this function is used to remark what ever is in the memory of the board, especially convenient for high speed marking of a same pattern.

-Compatible with USB2.0 specifications.

-Compatible with Windows 10 32/64 bit or older.
