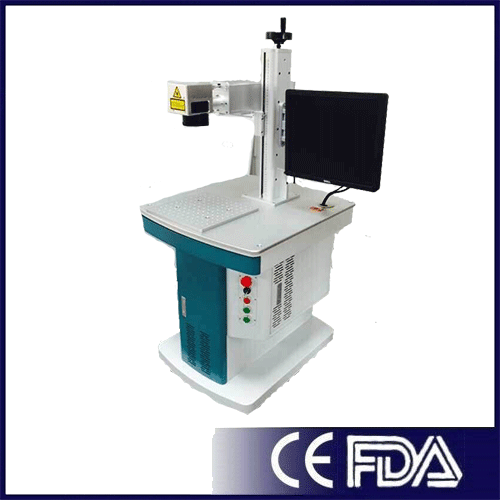

KCF-20W Fiber-optic laser marker, very flexible and is easily integrated into industrial production processing. it can operate laser directly by controling interface (USB) , no supplies, and products depreciation costs are greatly reduced. By comparison,it has performances including high efficiency, long life and maintenance-free.

.
Advantages:

 1, High-definition: The resolution is measured by micron; It is two times clearer than a traditional machine.
 2, Less power consumption
 3, High-speed: The speed is three to five times faster than traditional machines.
 4, Stability: The stability of machine is much better than similar counterpart.
 5, Long life: Its lifespan is ten times longer than traditional machines.

Parameters Name                                   Parameters Datas
Average laser output power                  20W(Continuum or Pulse)
 Laser wavelength                                1064nm
 Power adjustment range                      10-100%
 Repetition frequency                            20-100KHz
 Output beam quality                            ＜1.5M²
Marking Linear deep                            ≤1.2mm
 Min. Highlight spot                              0.005mm
 Min. character size high                      0.15mm
 Repetition accuracy                            ±0.001mm
 Max. Linear marking speed                 12000mm/s
 Marking format                                   Graphics, character, bar code, two-dimensional code, date, serial number
 Software                                             WINXP + support file formats of PLT, PCX, DXF, BMP etc; SHX and TTF fonts.
 Standard marking area                        100mm×100mm
 Marking area option                             50mm×50mm  150mm×150mm  200mm×200mm
 Power consumed                                ≤160W
 Electrical demand                               110V±10%/60Hz/4A
 Cooling Mode                                     Air-cooled
 Control interface                                 USB
 Laser module life                                ＞100000 hours
 Laser                                                 IPG
 Resonance mirror                               High speed
 Usage environment                             Clean, no shaking

Application

1. Ink and paint; phone battery labels, panels, phone buttons, small daily necessities ,accessories and so on.
 2. Ceramics, EP materials; marking of electronic component package, IC, etc.
 3. Plastic products; mark device shell, electronic products, LOGO, and other numerical orders
 4. Metal and its surface; Stainless steel, copper, aluminum and oxidation, electroplating; used in marking hardware, daily necessities, electric cladding, Phone case etc.
 5. Keyboard and keystroke; Fine Marking of keyboard and keystrokes.
