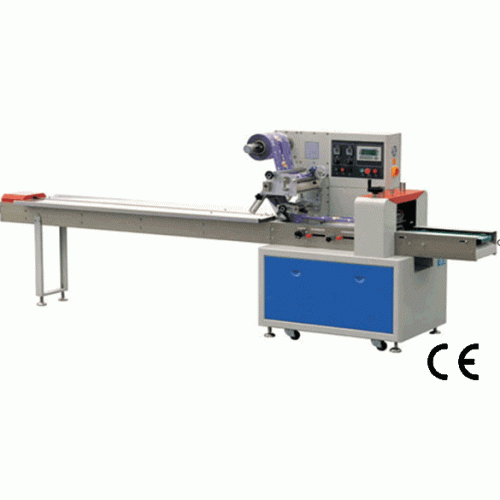

Horizontal Flow Wrapper

Brand new machine factory direct

FREE UPGRADE TO TOUCHSCREEN CONTROLS

Features:

1. Double transducer control
2. Flexible bag length cutting
3. Self diagnosing failure function
4.High sensitivity optical electric color mark tracking with digital input cut position makes sealing and cutting more accurate.
5. Separate PID control for temperature, suitable for various packing materials.
6. Simple reliable driving system for convenient maintenance
7. All the controls are achieved by software for convenient adjustments and upgrading.
8. All surfaces that touch product are 304 Stainless steel.

Technical Specs:

Film Width: Max 250mm (9.84 inches)
Bag Length: 65mm-190mm, 120mm-280mm (2.56"-7.48", 4.72"-11.02")
Bag Width: 30mm-110mm (1.18"-4.33")
Product Height: 40mm (1.57")
Packaging Rate: 40-230 bags per minute
Power: 220V,50/60HZ,2.4KW
Dimensions: L 3770 X W 670 X H 1450 (L 148.43" x W 26.38" x H 57.09")
Machine Weight: 550kg (1,212 lbs)

Optional Equipment:

Touchscreen Control
All stainless steel version available
Conveyor can be shortened if needed to accommodate your space needs.

Machine will ship right from the factory and will arrive to your location in approximately 10-14 weeks from time of payment.  Air freight is available if needed quicker.

Machine is suitable for packaging various kinds of regular objects like snacks, pies, candy, breads, noodles, medicines, toiletries, industrial parts etc..
