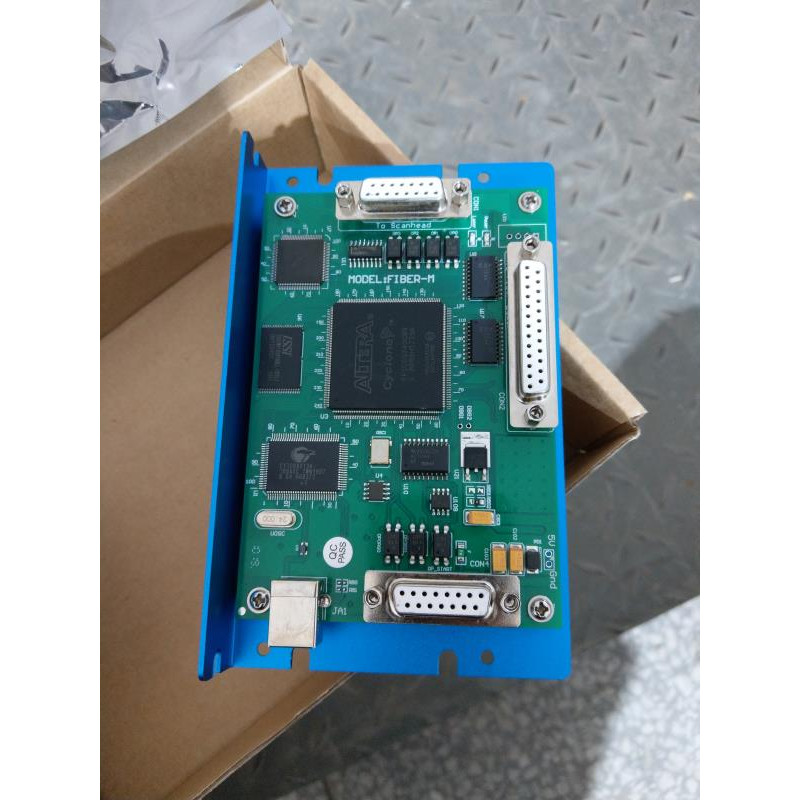

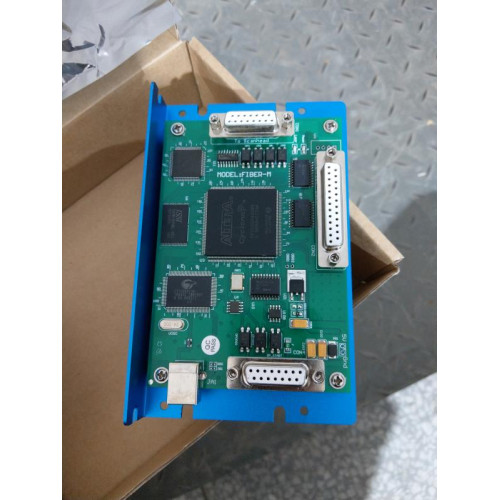

EZCad Laser Marking mini control card - V4 (GENUINE CARD)

EZCad Laser Marking mini control card - V4 (GENUINE CARD)

  • Product Code: LMCV4-FIBER-M
  • Availability: In Stock

0 reviews / Write a review

  • $419.95

  • Ex Tax: $419.95

Qty

Product model:LMCV4-FIBER-M


Laser Marking cards enables real-time control of scan system and lasers over a standard USB host interface. Customers can integrate complete machinery easily over the EzCad Card due to its compact size and I/O capabilities. Used for laser marking equipment. Uses USB interface to communicate with the host computer.
Has the following key features and benefits: 128 Kbyte program and data memory 64 Kbyte SRAM for USB data buffering 1. Used with galvanometer laser marking system; 2. High hardware data processing speed, high precision; 3. Support for switching YAG/CO2/IPG way marking the PWM signal can support all RF excitation laser tube;

4. support for high-speed high-precision parts function.

5. Two 16-bit analog output is used to control high-speed galvanometer; output voltage can be customized. (Typical values: ± 3.3v, ± 5v, ± 10v) 6. 0 ~ 5V analog output is used to adjust the frequency Q 7. 0 ~ 9.5V analog output is used to adjust the pump supply current 8. TTL signal (LASER) is used to control the laser switch 9. TTL signal (PWM) for outputting the modulated signal 10. two-way direction / pulse signal, can control two stepper motors / servo motors

DOES NOT SUPPORT MARK ON THE FLY

 -Compatible with Windows 10 32/64 bit or older.
