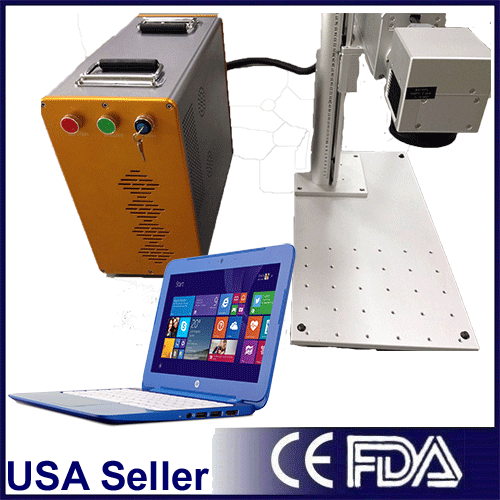

KCLM1-100WPS MOPA Fiber-optic laser marker, very flexible and is easily integrated into industrial production processing. it can operate laser directly by controlling interface (USB) , no supplies, and products depreciation costs are greatly reduced. By comparison,it has performances including high efficiency, long life and maintenance-free.

Advantages:

 1. 10ns - 350ns ultrawide adjustable pulse width allows wide application range of materials
 2. Pulse repetition rate of 1-1000kHz achieves better performance on plastics and other sensitive materials
 3. Short pulse duration enables quick black marking of aluminum.
 4. Excellent beam quality, no deformation or paint peeling on thin plate
 5. First pulse availability and quicker pulse response speed.

Parameters Name                                   Parameter Data
Average laser output power                  >100W
 Laser wavelength                                   1064nm
 Full power repetition range                  1.5 mJ
 Power adjustment range                       0-100%
 Pulse Repetition rate                             1-1000 kHz
 Full power repetition rate                     67-1000 kHz
 Pulse duration                                        10-350 ns
 Delivery Cable Length                           <1.3 m
 Output beam diameter                         6 mm
 Anti Reflection protection                      yes
 Marking format                                   Graphics, character, bar code, two-dimensional code, date, serial number
 Software                                             WINXP + support file formats of PLT, PCX, DXF, BMP etc; SHX and TTF fonts.
 Standard marking area                        100mm×100mm
 Marking area option                             50mm×50mm  150mm×150mm  200mm×200mm 300mmX300mm
 Power consumed                                ≤480W
 Electrical demand                               110V±10%/60Hz/4A
 Cooling Mode                                     Air-cooled
 Control interface                                 USB
 Laser module life                                ＞100000 hours
 Laser                                                     MOPA M1
   Usage environment                             Clean, no vibration

Application

 1. Color marking on stainless steel and titanium, black marking on anodized aluminum
 2. Ink and paint; phone battery labels, panels, phone buttons, small daily necessities ,accessories and so on.
 3. Ceramics, EP materials; marking of electronic component package, IC, etc.
 4. Plastic products; mark device shell, electronic products, LOGO, and other numerical orders
 5. Metal and its surface; Stainless steel, copper, aluminum and oxidation, electroplating; used in marking hardware, daily necessities, electric cladding, Phone case etc.
 6. Keyboard and keystroke; Fine Marking of keyboard and keystrokes.
