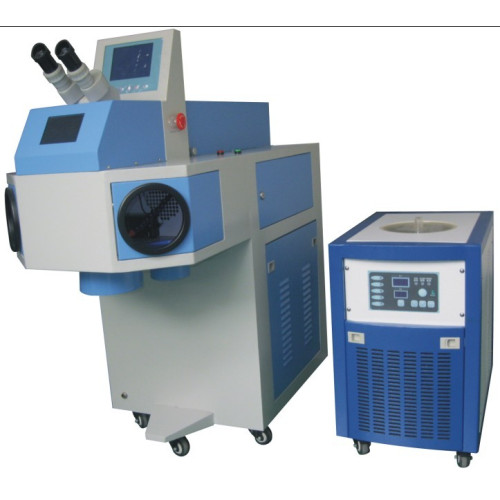

200 Watt Yag Laser welder commonly used in Jewelry and Dental welding
- Product Code: KC-550
- Availability: In Stock
$12,195.00
- Ex Tax: $12,195.00

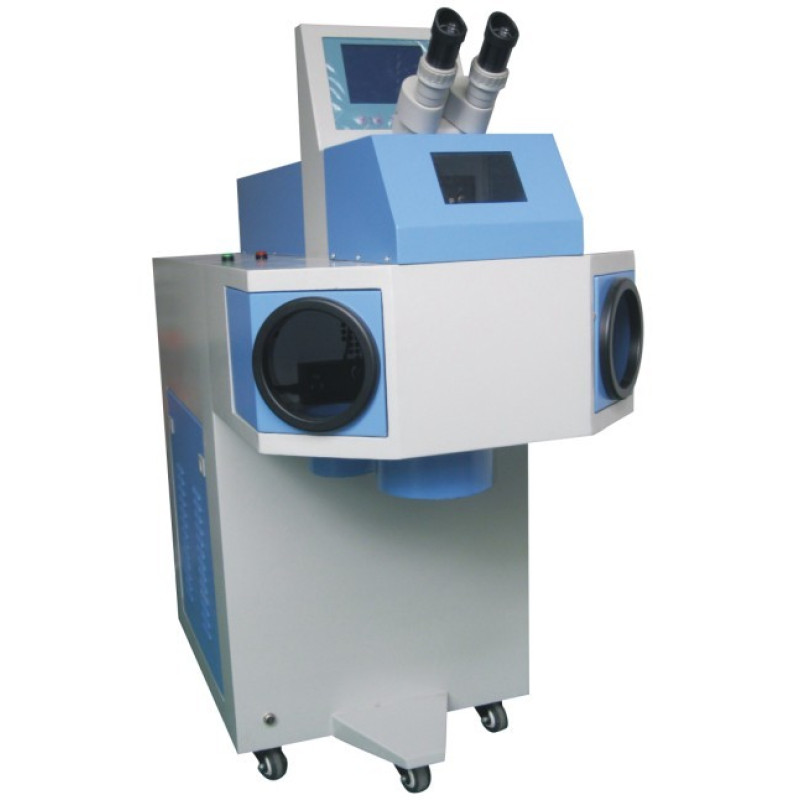

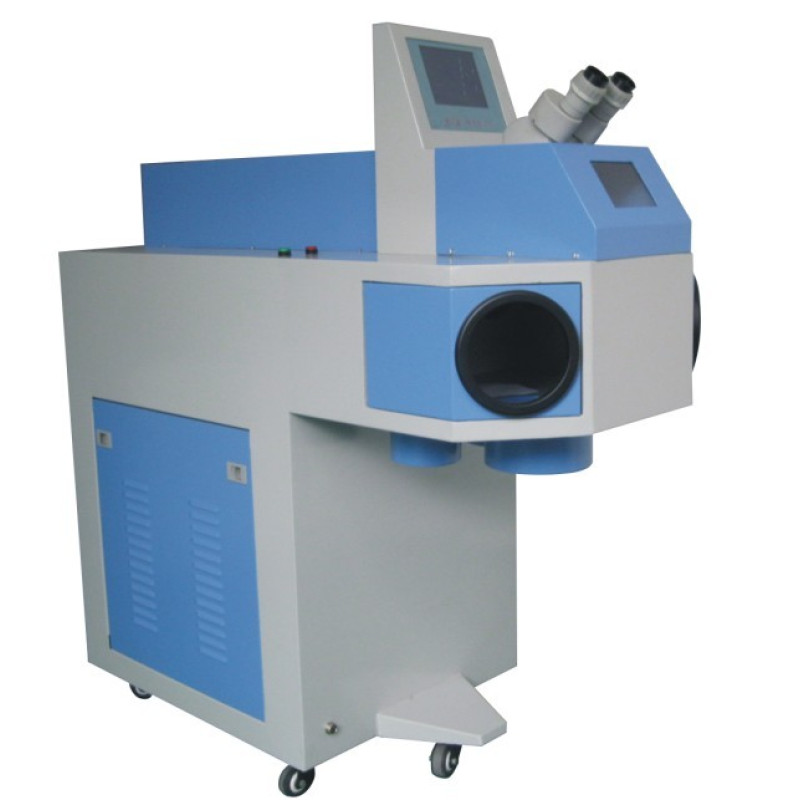

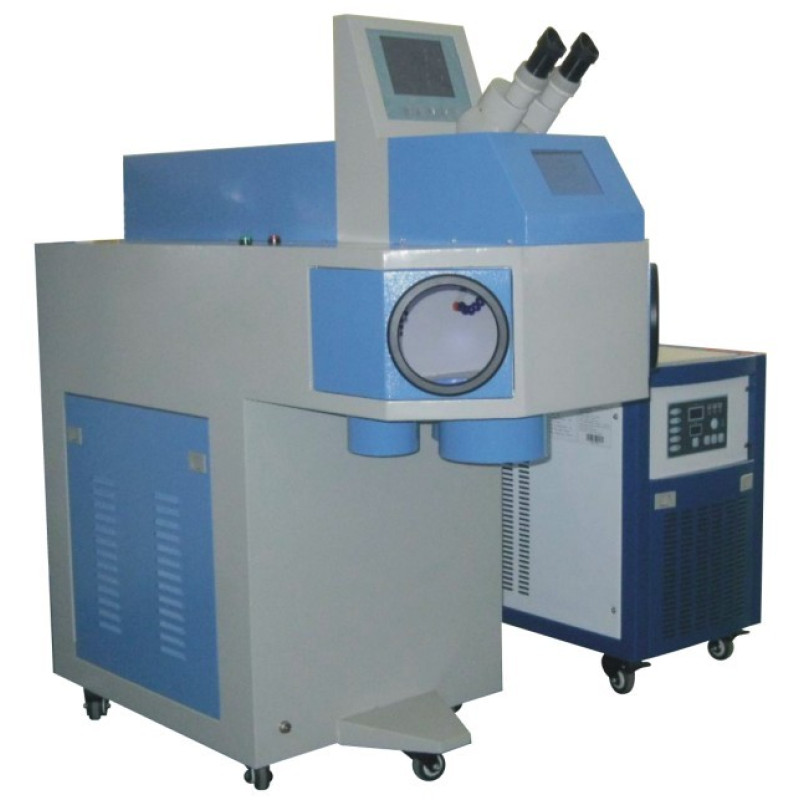

200 Watt Yag Jewelry Laser Welder
Brand new machine with 2 year Manufacturers Warranty
Features:
Mainly used for gold and silver jewelry to fill holes and welding slag. Machine has a wide application of uses and highly efficient
1.Laser spot welding is one of laser welding technology application\\\'s most important aspects, spot welding process is heat conduction, the laser radiation heats the surface driven by the internal diffusion and heat transfer by controlling the laser pulse width, energy, peak power and repetition frequency and other parameters,so that the piece melts and forms a specific pool.
2.Laser spot welding machine has the character of high speed, high efficiency, depth, non-deformation quality ,and thermal impact on small area . High quality welding, weld formation, spot clean, efficient and environmentally friendly, without solder wire and so on.

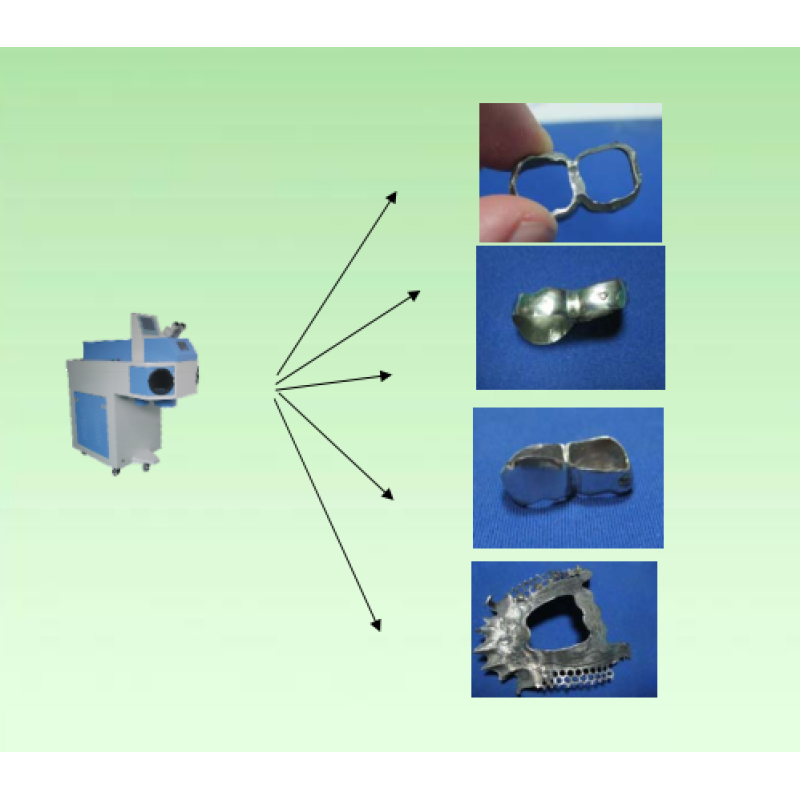

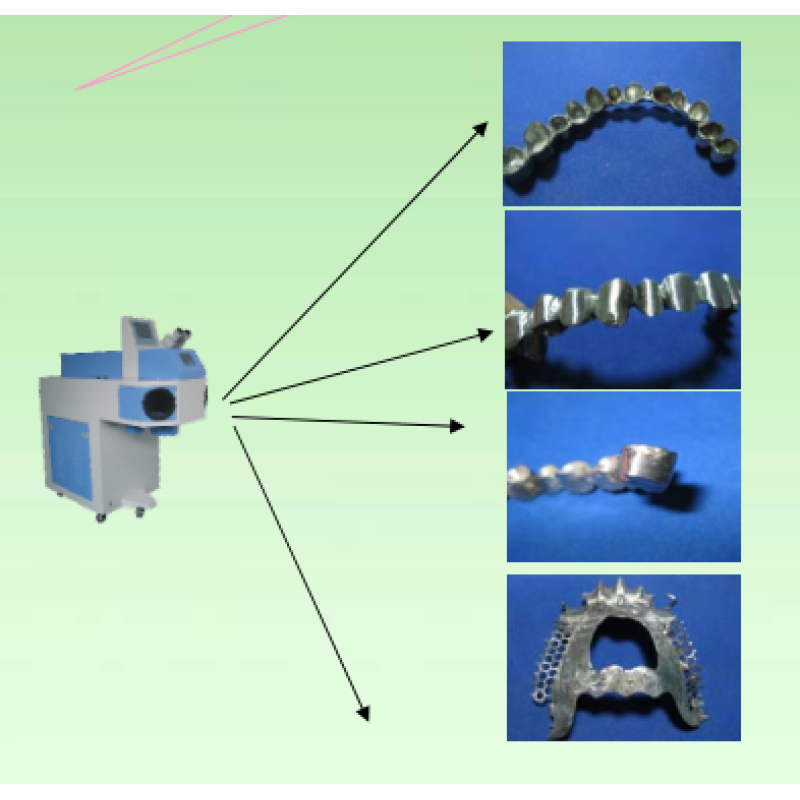

3.The machine is mainly used for gold and silver ornaments of the fill hole and the spot trachoma, widely used in spot welding of micro precision parts, such as jewelry,batteries, IC lead, watch springs, tubes, electron gun assembly, and other areas.
Maximum average power | 200W |
Laser wavelength | 1064nm |
Max Pulse energy | 120J |
Laser welding depth | 0.1-3.3mm |
The pulse width | 0.3-20ms |
Batter, laser welding frequency | 0.5-20Hz |
Adjustable range of spot size | 0.2-3mm |
Control system | Industrial computer |
Machine Power consumption | ≤5.5 k w |
The demand for electricity | 220V±0%/60Hz/15A |
System components and environmental system components | Host computer, Cold water tank |
Supplies | Xenon lamp, filter, protection lens, argon gas |
Installation environment | Installation Location: 4 square meters. |
Environment | clean, no dust or less dust |
Temperature | 55℉ (13℃) to 82℉(28℃) |
Humidity | 5% to 75%non-condensing. |
Power | 220V 60HZ Alternating current,30A breaker recommended |
Machine will ship right from the factory and will arrive to your location in approximately 8-10 weeks. Freight price listed is all inclusive of all delivery fees including customs charges. Air freight is available if needed quicker.
